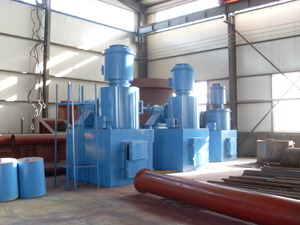

Waste Incinerator Model YD-100

Waste Incinerator Model YD-100

Product Description

Key Features:
* All models with Dual combustion chamber.
* Stainless Steel chimney/stack, long lifetime.
* High temperature, long lifetime of incinerator.
* Free or minimum installation on site.
* High burn rate, from 10kgs to 600kgs per hour, up to 10ton per day.
* New Design for pet animal cremation business.
* One year warranty on incinerator and parts in stock.



Model YD-100
Burning Rate 100 kgs/hour
Feed Capacity 200 kgs
Paimary Combustion Chamber 1200 Liters
Secondary Combustion Chamber 500 Liters
Mix Combustion Chamber Yes
Smoke Filter Chamber Yes
Feed Mode Manual
Voltage 220V/380V
Power 0.9Kw
Fuel Type Diesel Oil/ Natural Gas/LPG
Burner Italy Original
Oil Consumption (Diesel Oil) 14–28 kg/hour
Gas Consumption (Natural Gas) 10–32.2 m3/hour
Internal Dimensions 130 x 100 x 90cm (paimary chamber)
External Dimensions 220 x 180 x 360cm (without chimney)
Temperature Monitor Yes
Oil Tank Capacity(if oil fuel) 300 Liters
Door Opening 55 x 80cm
Chimney Length 10.0 Meters
Chimney Type Stainless Steel
Equipment Gross Weight 4300 kgs
Operation Technical Specifications
Paimary Chamber Temperature 800℃–1000℃
Secondary Chamber Temperature 1000℃-1200℃
Residency Time 2.0 Sec.
Burning Efficiency >98%
Waste Lower Calorific Power 3000Kcal
